lattpy.plotting

Contains plotting tools for the lattice and other related objects.

lattpy.plotting.subplot(dim, adjustable='box', ax=None)

Generates a two- or three-dimensional subplot with a equal aspect ratio

Parameters

dimint

The dimension of the plot.

adjustableNone or {‘box’, ‘datalim’}, optional

If not None, this defines which parameter will be adjusted to meet the equal aspect ratio. If ‘box’, change the physical dimensions of the Axes. If ‘datalim’, change the x or y data limits. Only applied to 2D plots.

axAxes, optional

Existing axes to format. If an existing axes is passed no new figure is created.

Returns

figFigure

The figure of the subplot.

axAxes

The newly created or formatted axes of the subplot.

lattpy.plotting.draw_line(ax, points, **kwargs)

Draw a line segment between multiple points.

Parameters

axAxes

The axes for drawing the line segment.

points(N, D) np.ndarray

A list of points between the line is drawn.

**kwargs

Additional keyword arguments for drawing the line.

Returns

collLine2D or Line3D

The created line.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> points = np.array([[1, 0], [0.7, 0.7], [0, 1], [-0.7, 0.7], [-1, 0]])
>>> _ = plotting.draw_line(ax, points)
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_lines(ax, segments, **kwargs)

Draw multiple line segments between points.

Parameters

axAxes

The axes for drawing the lines.

segmentsarray_like of (2, D) np.ndarray

A list of point pairs between the lines are drawn.

**kwargs

Additional keyword arguments for drawing the lines.

Returns

coll: LineCollection or Line3DCollection

The created line collection.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> segments = np.array([
...     [[0, 0], [1, 0]],
...     [[0, 1], [1, 1]],
...     [[0, 2], [1, 2]]
... ])
>>> _ = plotting.draw_lines(ax, segments)
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.hide_box(ax, axis=False)

Remove the box and optionally the axis of a plot.

Parameters

axAxes

The axes to remove the box.

axisbool, optional

If True the axis are hiden as well as the box.

lattpy.plotting.draw_arrows(ax, vectors, pos=None, **kwargs)

Draws multiple arrows from an optional starting point in the given directions.

Parameters

axAxes

The axes for drawing the arrows.

vectors(N, D) np.ndarray

The vectors to draw.

pos(D, ) np.ndarray, optional

The starting position of the vectors. The default is the origin.

**kwargs

Additional keyword arguments for drawing the arrows.

Returns

coll: LineCollection or Line3DCollection

The created line collection.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> vectors = np.array([[1, 0], [0.7, 0.7], [0, 1], [-0.7, 0.7], [-1, 0]])
>>> _ = plotting.draw_arrows(ax, vectors)
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_vectors(ax, vectors, pos=None, **kwargs)

Draws multiple lines from an optional starting point in the given directions.

Parameters

axAxes

The axes for drawing the lines.

vectors(N, D) np.ndarray

The vectors to draw.

pos(D, ) np.ndarray, optional

The starting position of the vectors. The default is the origin.

**kwargs

Additional keyword arguments for drawing the lines.

Returns

coll: LineCollection or Line3DCollection

The created line collection.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> vectors = np.array([[1, 0], [0.7, 0.7], [0, 1], [-0.7, 0.7], [-1, 0]])
>>> _ = plotting.draw_vectors(ax, vectors, [1, 0])
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_points(ax, points, size=10, **kwargs)

Draws multiple points as scatter plot.

Parameters

axAxes

The axes for drawing the points.

points(N, D) np.ndarray

The positions of the points to draw.

sizefloat, optional

The size of the markers of the points.

**kwargs

Additional keyword arguments for drawing the points.

Returns

scatPathCollection

The scatter plot item.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> points = np.array([[1, 0], [0.7, 0.7], [0, 1], [-0.7, 0.7], [-1, 0]])
>>> _ = plotting.draw_points(ax, points)
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_indices(ax, positions, offset=0.05, **kwargs)

Draws the indices of the given positions on the plot.

Parameters

axAxes

The axes for drawing the text.

positions(…, D) array_like

The positions of the texts.

offsetfloat or (D, ) array_like

The offset of the positions of the texts.

**kwargs

Additional keyword arguments for drawing the text.

Returns

textslist

The text items.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> points = np.array([[-1, 0], [-0.7, 0.7], [0, 1], [0.7, 0.7], [1, 0]])
>>> fig, ax = plt.subplots()
>>> _ = plotting.draw_points(ax, points)
>>> _ = plotting.draw_indices(ax, points)
>>> ax.margins(0.1, 0.1)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_unit_cell(ax, vectors, outlines=True, **kwargs)

Draws the basis vectors and unit cell.

Parameters

axAxes

The axes for drawing the text.

vectorsfloat or (D, D) array_like

The vectors defining the basis.

outlinesbool, optional

If True the box define dby the basis vectors (unit cell) is drawn.

**kwargs

Additional keyword arguments for drawing the lines.

Returns

lineslist

A list of the plotted lines.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> vectors = np.array([[1, 0], [0, 1]])
>>> fig, ax = plt.subplots()
>>> _ = plotting.draw_unit_cell(ax, vectors)
>>> plt.show()

(png, pdf)

lattpy.plotting.draw_surfaces(ax, vertices, **kwargs)

Draws a 3D surfaces defined by a set of vertices.

Parameters

axAxes3D

The axes for drawing the surface.

verticesarray_like

The vertices defining the surface.

**kwargs

Additional keyword arguments for drawing the lines.

Returns

surfPoly3DCollection

The surface object.

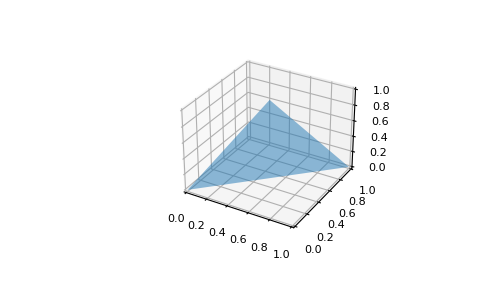

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> vertices = [[0, 0, 0], [1, 1, 0], [0.5, 0.5, 1]]
>>> fig = plt.figure()
>>> ax = fig.add_subplot(111, projection="3d")
>>> _ = plotting.draw_surfaces(ax, vertices, alpha=0.5)
>>> plt.show()

(png, pdf)

lattpy.plotting.interpolate_to_grid(positions, values, num=(100, 100), offset=(0.0, 0.0), method='linear', fill_value=nan)

lattpy.plotting.draw_sites(ax, points, radius=0.2, **kwargs)

Draws multiple circles with a scaled radius.

Parameters

axAxes

The axes for drawing the points.

points(N, D) np.ndarray

The positions of the points to draw.

radiusfloat

The radius of the points. Scaling is only supported for 2D plots!

**kwargs

Additional keyword arguments for drawing the points.

Returns

point_collCircleCollection or PathCollection

The circle or path collection.

Examples

>>> from lattpy import plotting
>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots()
>>> points = np.array([[1, 0], [0.7, 0.7], [0, 1], [-0.7, 0.7], [-1, 0]])
>>> _ = plotting.draw_sites(ax, points, radius=0.2)
>>> _ = ax.set_xlim(-1.5, +1.5)
>>> _ = ax.set_ylim(-0.5, +1.5)
>>> plotting.set_equal_aspect(ax)
>>> plt.show()

(png, pdf)

lattpy.plotting.connection_color_array(num_base, default='k', colors=None)

Construct color array for the connections between all atoms in a lattice.

Parameters

num_baseint

The number of atoms in the unit cell of a lattice.

defaultstr or int or float or tuple

The default color of the connections.

colorsSequence[tuple], optional

list of colors to override the defautl connection color. Each element has to be a tuple with the first two elements being the atom indices of the pair and the third element the color, for example [(0, 0, 'r')].

Returns

color_arrayList of List

The connection color array

Examples

>>> connection_color_array(2, "k", colors=[(0, 1, "r")])
[['k', 'r'], ['r', 'k']]
